Description

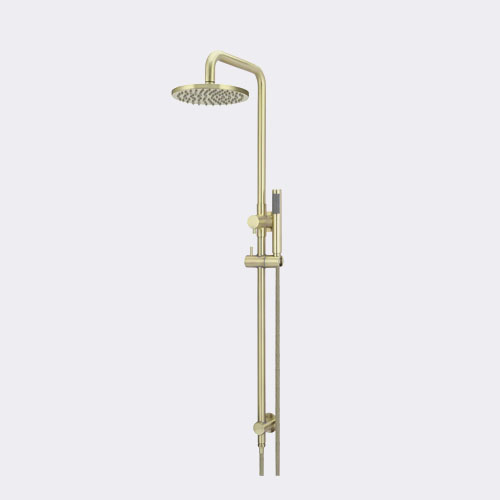

Introducing our innovative Single Shower Rail, a world-first design exclusive to Meir. Featuring a universal water inlet, it offers flexible installation options for both top and bottom water connections, suitable for any home. With a simple twist of the in-built diverter, seamlessly switch between the overhead shower and precision shower wand for versatile washing.

Simplistic design and functional at the highest level.

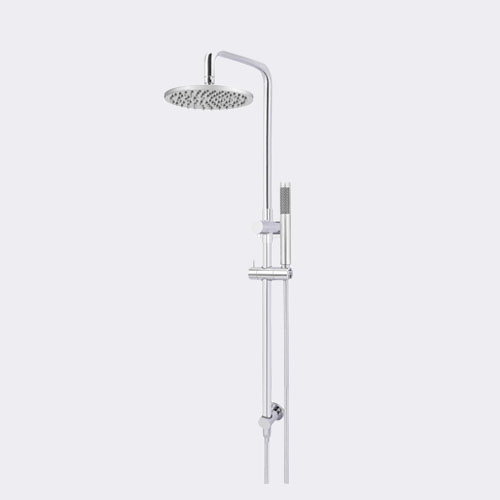

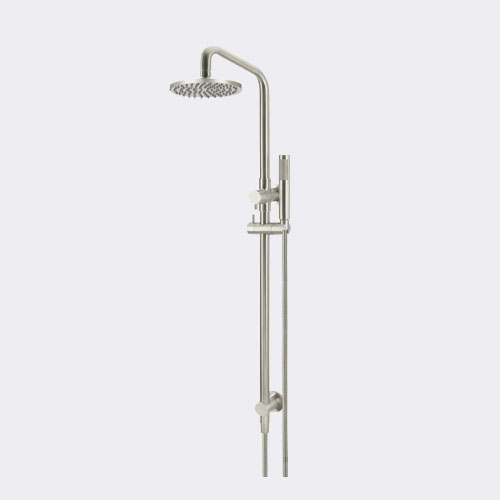

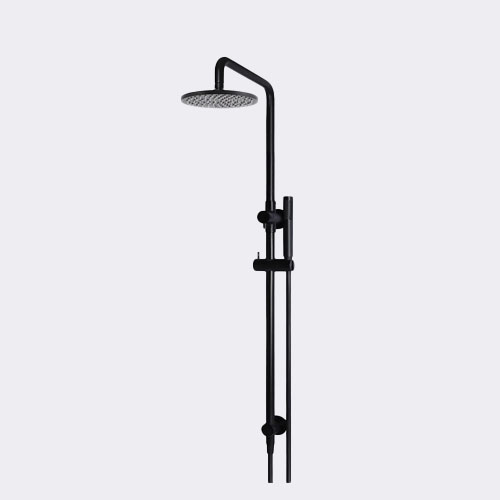

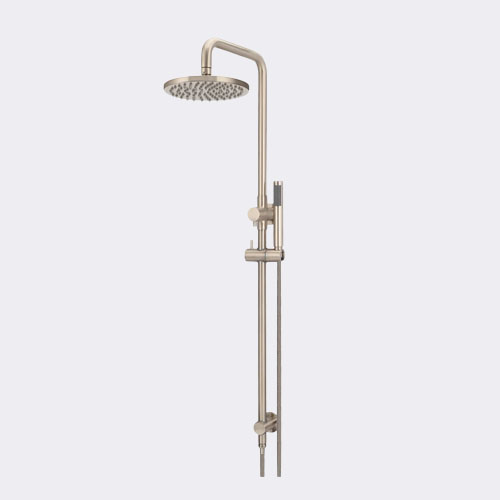

Finish : Tiger Bronze Gold, Champagne, Matte Black, Brushed Nickel, Chrome

Specifications
– Standard 1/2″ BSP thread
– WELS registration No: S15401 ( 200 mm ) , S15465 ( 300 mm)
– WELS-rated 3 star 9L/min
– Watermark approved; AS/NZS 3718:2005
– Universal top or bottom water inlet thread (1/2″ female)
– Built-in diverter
– Flexible 1.5m  hose
– Solid brass construction throughout
– Maximum water pressure for this shower rail is 1,000 kPa

Please note, this product may have a visible Meir or Watermark logo.

Warranty:
– Lifetime cartridge, product, finish or parts replacement
– 12 months labour and ceramic disc spindles

Care instructions:
– Do not use any chemical-based or harsh cleaners. Avoid any rough surface materials such as scourers
– Only use a soft cloth with warm soapy water
– Filters and aerators must be regularly cleaned
– In hard-water usage areas, high-quality water softeners and filters must be used

Technical Data ( 300 mm)
Technical Data ( 200 mm)
